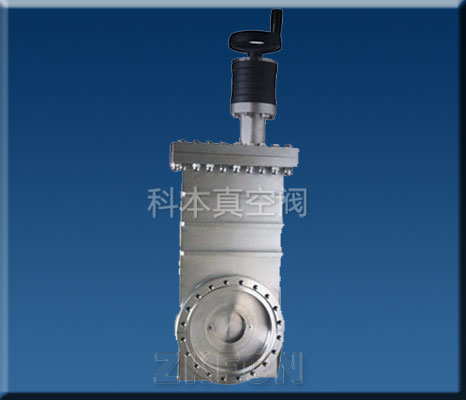

真空插板閥 Manual Ultra-high Vacuum Gate Valve
手動真空插板閥是以手柄帶動閥板作上下運動使閥板開啟或關閉。真空閥門用于接通或切斷真空管路中的氣流。真空插板閥適用介質為純凈空氣和非腐蝕性氣體。 永嘉縣科本真空閥門廠是中國泵閥產業集群“中國泵閥之鄉—溫州甌北”里專業從事真空閥門研制開發、制造生產、銷售服務為一體的專業真空閥門廠。電話：0577-67318321
manual ultra-high vacuum gate valve uses a handle to drive valve disc up and down to perform open and close action. It is used to put through or cut off the airflow in vacuum pipeline. Applicable medium can be pure air and noncorrosive gases.
真空插板閥主要技術性能 Main Technical Performance
| 適用范圍：Applicability | 105～1.3×10-7Pa |
| 閥門漏率：Valve Leak Rate | ≤1.3×10-7Pa.L/S. |
| 適用溫度：Applicable Temperature | -30～+150℃ |
| 閥門開啟時閥板兩側的壓差： The differential pressure between the two sides of valve disc upon valve opening: | ≤2.7×103Pa. |
真空插板閥主要零件材料 Materials of Main Parts
閥體、閥板：不銹鋼 Body, and disc: stainless steel
密封件：氟橡膠、波紋管(軸封)、丁腈橡膠。Sealing element: Viton, bellows(shaft seal), NBR
