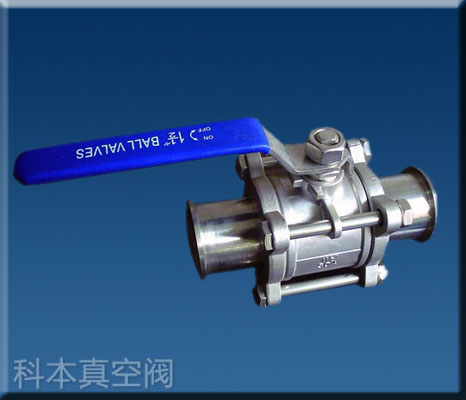

GU高真空（壓力）球閥 GU High Vacuum (Pressure) Ball Valve

GU高真空（壓力）球閥用于接通或切斷真空(壓力)系統管路中的介質流。GU高真空球閥應用于真空、乳制品、酒業、生物工程、食品、制藥、飲料、化妝品及化工領域。

GU high vacuum(pressure) ball valve is used to put through or cut off the medium flow in vacuum(pressure)pipeline in the areas of vacuum, dairy products, breweries, biological engineering, foodstuff, pharmaceuticals, drinks, cosmetics and chemicals.

主要技術性能 Main Technical Performance

　閥門漏率：Valve Leak Rate 　≤1.3×10^-4Pa.L/S.
　適用溫度：Applicable Temperature 　-30～+150℃　-30～+150℃(PPL密封)
　適用范圍：Appy Range
　連接型式　Loose Flange 　使用壓力范圍(Pa)
　活套法蘭(GB6070、JB919) 　0.6×106～1.3×10^-4
　焊接法蘭(GB6070、JB919) 　1.6×106～1.3×10^-4
　快卸法蘭(GB4982) 　0.1×10⁶～1.3×10^-4
　螺紋連接　Threaded Connection 　1.6×10⁶～1.3×10^-4

主要零件材料 Materials of Main Parts

閥體、閥蓋、閥桿：不銹鋼 Body, disc and stem: stainless steel.
密封件：四氟乙烯、丁腈橡膠、氟橡膠、PPL。Sealing element: PTFE, NBR, Viton, PPL.
